State

×

This book is a work in progress!

If you see a mistake, find something unclear, or have a suggestion, please file a ticket. To know when new chapters are up, join the mailing list:

Thank you!

— Bob (@munificentbob)

Confession time: I went a little overboard and packed way too much into this chapter. It’s ostensibly about the State design pattern. But I can’t talk about that and games without going into the more fundamental concept of finite state machines (or "FSMs"). But then once I went there, I figured I might as well introduce hierarchical state machines and pushdown automata.

That’s a lot to cover, so to keep things as short as possible, the code samples here leave out a few details that you’ll have to fill in on your own. I hope they’re still clear enough for you to get the big picture.

Don’t feel sad if you’ve never heard of a state machine. While well known to AI and compiler hackers, they aren’t that familiar to other programming circles. I think they should be more widely known, so I’m going to throw them at a different kind of problem here.

We’ve All Been There

We’re working on a little side-scrolling platformer. Our job is to implement the heroine that is the player’s avatar in the game world. That means making her respond to user input. Push the B button and she should jump. Simple enough:

void Heroine::handleInput(Input input)
{
  if (input == PRESS_B)
  {
    yVelocity_ = JUMP_VELOCITY;
    setGraphics(IMAGE_JUMP);
  }
}

Spot the bug?

There’s nothing to prevent "air jumping": keep hammering B while she’s in the air and she will float forever. The simple fix is to add an isJumping_ boolean field to Heroine that tracks when she’s jumping, and then do:

void Heroine::handleInput(Input input)
{
  if (input == PRESS_B)
  {
    if (!isJumping_)
    {
      isJumping_ = true;
      // Jump...
    }
  }
}

Next, we want the heroine to duck if the player presses down while she’s on the ground, and stand back up when the button is released:

void Heroine::handleInput(Input input)
{
  if (input == PRESS_B)
  {
    // Jump if not jumping...
  }
  else if (input == PRESS_DOWN)
  {
    if (!isJumping_)
    {
      setGraphics(IMAGE_DUCK);
    }
  }
  else if (input == RELEASE_DOWN)
  {
    setGraphics(IMAGE_STAND);
  }
}

Spot the bug this time?

With this code, the player could:

  1. Press down to duck.
  2. Press B to jump from a ducking position.
  3. Release down while still in the air.

The heroine will switch to her standing graphic in the middle of the jump. Time for another flag…

void Heroine::handleInput(Input input)
{
  if (input == PRESS_B)
  {
    if (!isJumping_ && !isDucking_)
    {
      // Jump...
    }
  }
  else if (input == PRESS_DOWN)
  {
    if (!isJumping_)
    {
      isDucking_ = true;
      setGraphics(IMAGE_DUCK);
    }
  }
  else if (input == RELEASE_DOWN)
  {
    if (isDucking_)
    {
      isDucking_ = false;
      setGraphics(IMAGE_STAND);
    }
  }
}

Next, it would be cool if the heroine did a dive attack if the player presses down in the middle of a jump:

void Heroine::handleInput(Input input)
{
  if (input == PRESS_B)
  {
    if (!isJumping_ && !isDucking_)
    {
      // Jump...
    }
  }
  else if (input == PRESS_DOWN)
  {
    if (!isJumping_)
    {
      isDucking_ = true;
      setGraphics(IMAGE_DUCK);
    }
    else
    {
      isJumping_ = false;
      setGraphics(IMAGE_DIVE);
    }
  }
  else if (input == RELEASE_DOWN)
  {
    if (isDucking_)
    {
      // Stand...
    }
  }
}

Bug hunting time again. Find it?

We check that you can’t air jump while jumping, but not while diving. Yet another field…

Something is clearly wrong with our approach. Every time we touch this handful of code we break something. We need to add a bunch more moves — we haven’t even added walking yet — but at this rate it will collapse into a heap of bugs before we’re done with it.

Finite State Machines to the Rescue

In a fit of frustration, you sweep everything off your desk except a pen and paper and start drawing a flowchart. You draw a box for each thing the heroine can be doing: standing, jumping, ducking, and diving. When she can respond to a button press in one of those states, you draw an arrow from that box, label it with that button, and connect it to the state she changes to.

Congratulations, you’ve just created a finite state machine. These came out of a branch of computer science called automata theory whose family of data structures also include the famous Turing machine. FSMs are the simplest member of that family.

The gist is:

In their pure form, that’s the whole banana: states, inputs, and transitions. You can draw it out like a little flowchart. Unfortunately, the compiler doesn’t recognize our scribbles, so how do we go about implementing one? The Gang of Four’s State pattern is one way which we’ll get to, but let’s start simpler.

Enums and Switches

One problem our Heroine class has is some combinations of those boolean fields aren’t valid: isJumping_ and isDucking_ should never both be true, for example. When you have a handful of flags where only one is true at a time, that’s a hint that what you really want is an enum.

In this case, that enum is exactly the set of states for our FSM, so let’s define that:

enum State
{
  STATE_STANDING,
  STATE_JUMPING,
  STATE_DUCKING,
  STATE_DIVING
};

Instead of a bunch of flags, Heroine will just have one state_ field. We also flip the order of our branching. In the previous code, we switched on input, then on state. This kept the code for handling one button press together, but smeared around the code for one state. We want to keep that together, so we switch on state first. That gives us:

void Heroine::handleInput(Input input)
{
  switch (state_)
  {
    case STATE_STANDING:
      if (input == PRESS_B)
      {
        state_ = STATE_JUMPING;
        yVelocity_ = JUMP_VELOCITY;
        setGraphics(IMAGE_JUMP);
      }
      else if (input == PRESS_DOWN)
      {
        state_ = STATE_DUCKING;
        setGraphics(IMAGE_DUCK);
      }
      break;

    case STATE_JUMPING:
      if (input == PRESS_DOWN)
      {
        state_ = STATE_DIVING;
        setGraphics(IMAGE_DIVE);
      }
      break;

    case STATE_DUCKING:
      if (input == RELEASE_DOWN)
      {
        state_ = STATE_STANDING;
        setGraphics(IMAGE_STAND);
      }
      break;
  }
}

This seems trivial, but it’s a real improvement over the previous code. We still have some conditional branching, but we simplified the mutable state to a single field. All of the code for handling a single state is now nicely lumped together. This is the simplest way to implement a state machine and is fine for some uses.

Your problem may outgrow this solution, though. Say we want to add a move where if our heroine ducks for a while, she charges up and then unleashes a special attack. While she’s ducking, we need to track the charge time.

We add a chargeTime_ field to Heroine to store how long the attack has charged. Assume we already have an update() that gets called each frame. In there, we add:

void Heroine::update()
{
  if (state_ == STATE_DUCKING)
  {
    chargeTime_++;
    if (chargeTime_ > MAX_CHARGE)
    {
      superBomb();
    }
  }
}

We need to reset the timer when she starts ducking, so we modify handleInput():

void Heroine::handleInput(Input input)
{
  switch (state_)
  {
    case STATE_STANDING:
      if (input == PRESS_DOWN)
      {
        state_ = STATE_DUCKING;
        chargeTime_ = 0;
        setGraphics(IMAGE_DUCK);
      }
      // Handle other inputs...
      break;

      // Other states...
  }
}

All in all, to add this charge attack we had to modify two methods and add a chargeTime_ field onto Heroine, even though it’s only meaningful while in the ducking state. What we’d prefer is to have all of that code and data nicely wrapped up in one place. The Gang of Four has us covered.

The State Pattern

For people deeply into the object-oriented mindset, every conditional branch is an opportunity to use dynamic dispatch (in other words a virtual method call in C++). I think you can go too far down that rabbithole. Sometimes an if is all you need.

But in our example, we’ve reached a tipping point where something object-oriented is a better fit. That gets us to the State pattern. In the words of the Gang of Four:

Allow an object to alter its behavior when its internal state changes. The object will appear to change its class.

That doesn’t tell us much. Heck, our switch does that. The concrete pattern they describe, applied to our heroine looks like this:

A state interface

First, we define an interface for the state. Every bit of behavior that is state-dependent — every place we had a switch before — becomes a virtual method in that interface. For us, that’s handleInput() and update():

class HeroineState
{
public:
  virtual ~HeroineState() {}
  virtual void handleInput(Heroine& heroine, Input input) {}
  virtual void update(Heroine& heroine) {}
};

Classes for each state

For each state, we define a class that implements the interface. Its methods define the heroine’s behavior when in that state. In other words, take each case from the earlier switches and move them into their state’s class. For example:

class DuckingState : public HeroineState
{
public:
  DuckingState()
  : chargeTime_(0)
  {}

  virtual void handleInput(Heroine& heroine, Input input) {
    if (input == RELEASE_DOWN)
    {
      // Change to standing state...
      heroine.setGraphics(IMAGE_STAND);
    }
  }

  virtual void update(Heroine& heroine) {
    chargeTime_++;
    if (chargeTime_ > MAX_CHARGE)
    {
      heroine.superBomb();
    }
  }

private:
  int chargeTime_;
};

Note that we also moved chargeTime_ out of Heroine and into the DuckingState class. This is great: that piece of data is only meaningful while in that state, and now our object model reflects that explicitly.

Delegate to the state

Next, we give the Heroine a pointer to her current state and then lose those big switches and delegate to the state instead:

class Heroine
{
public:
  virtual void handleInput(Input input)
  {
    state_->handleInput(*this, input);
  }

  virtual void update()
  {
    state_->update(*this);
  }

  // Other methods...
private:
  HeroineState* state_;
};

In order to "change state", we just need to assign state_ to point to a different HeroineState object. That’s the State pattern in its entirety.

Where Are the State Objects?

I did gloss over one bit here. To change states, we need to assign state_ to point to the new one, but where does that object come from? With our enum implementation, that was a no-brainer: enum values are just primitives like numbers. But now our states are classes which means we need an actual instance to point to. There are two common answers to this:

Static states

If the state object doesn’t have any other fields, then the only data it stores is a pointer to the internal virtual method table so that its methods can be called. In that case, there’s no reason to ever have more than one instance of it: every instance would be identical anyway.

In that case, you can just make a single static instance. Even if you have a bunch of FSMs all going at the same time in that same state, they can all point to the same instance since it has nothing machine-specific about it.

Where you put that static instance is up to you. Find a place that makes sense. For no particular reason, let’s put ours inside the base state class:

class HeroineState
{
public:
  static StandingState standing;
  static DuckingState ducking;
  static JumpingState jumping;
  static DivingState diving;

  // Other code...
};

Each of those static fields is the one instance of that state that the game uses. To make the heroine jump, the standing state would do something like:

if (input == PRESS_B)
{
  heroine.state_ = &HeroineState::jumping;
  heroine.setGraphics(IMAGE_JUMP);
}

Instantiated states

Sometimes, though, this doesn’t fly. A static state won’t work for the ducking state. It has a chargeTime_ field, and that’s specific to the heroine that happens to be ducking. This may coincidentally work in our game if there’s only one heroine, but if we try to add two-player coop and have two on screen at the same time, we’ll have problems.

In that case, we’ll actually have to create a state object when we transition to it, like:

// In StandingState:
if (input == PRESS_DOWN)
{
  delete heroine.state_;
  heroine.state_ = new DuckingState();
  // Other code...
}

This lets each FSM have its own instance of the state. When I can, I prefer to use static states since they don’t burn memory and CPU cycles allocating objects each state change. For states that are more, uh, stateful, though, this is the way to go.

Enter and Exit Actions

The goal of the state pattern is to encapsulate all of the behavior and data for one state in a single class. We’ve done that pretty well, but there’s still a loose end. We moved handling user input and updating the charge time into DuckingState, but there’s a bit of ducking-specific code left outside. Over in the standing state, when we start ducking, it does some initialization:

// In standing state:
if (input == PRESS_DOWN)
{
  // Change state...
  chargeTime_ = 0;
  setGraphics(IMAGE_DUCK);
}

The ducking state should really take care of resetting the charge time (after all, it’s the object that has that field) and playing the animation. We can handle that by giving the state an entry action:

class DuckingState : public HeroineState
{
public:
  virtual void enter(Heroine& heroine)
  {
    chargeTime_ = 0;
    heroine.setGraphics(IMAGE_DUCK);
  }

  // Other code...
};

Back in Heroine, we wrap changing the state in a little convenience method that calls that on the new state:

void Heroine::changeState(HeroineState* state)
{
  delete state_;
  state_ = state;
  state_->enter(*this);
}

In the standing code we use it like:

if (input == PRESS_DOWN)
{
  heroine.changeState(new DuckingState());
}

Now ducking really is encapsulated. One particularly nice thing about entry actions is that they run when you enter the state regardless of which state you’re coming from.

Most real-world state graphs have multiple transitions into the same state. For example, maybe our heroine can fire her weapon while standing, ducking, and jumping. That means you end up duplicating some code everywhere that transition occurs. Entry actions give you a place to consolidate that.

We can, of course, also extend this to support an exit action. This is just a method we call on the state we’re leaving right before we switch to the new state.

What’s the Catch?

I’ve spent all this time selling you on FSMs and now I’m going to pull the rug out from under you. Everything I’ve said so far is true, and they are a good fit for some problems. But their greatest virtue is also their greatest flaw.

State machines help you untangle hairy code by enforcing a very constrained structure on it. All you’ve got is a fixed set of states, a single current state, and some hardcoded transitions.

If you try using a state machine for something more complex like game AI, you will slam face-first into the limitations of that model. Thankfully, our forebears have found ways to dodge some of those barriers. I’ll close this chapter out by walking you through a couple of them.

Concurrent State Machines

We’ve decided to give our heroine the ability to carry a gun. When she’s packing heat, she can still do everything she could before: run, jump, duck, etc. But she also needs to be able to fire her weapon while doing it.

If we want to stick to the confines of an FSM, we have to double the number of states we have. For each existing state, we’ll need another one for doing the same thing while she’s armed: standing, standing with gun, jumping, jumping with gun, you get the idea.

Add a couple of more weapons and the number of states explodes combinatorially. Not only is it a huge number of states, it’s a huge amount of redundancy: the unarmed and armed states are almost identical except for the little bit of code to handle firing.

The problem is that we’ve jammed two pieces of state — what she’s doing and what she’s carrying — into a single machine. To model all possible combinations, we would need a state for each pair. The fix is obvious: have two separate state machines.

We keep our original state machine for what she’s doing and leave it alone. Then we define a separate state machine for what she’s carrying. Heroine will have two "state" references, one for each, like:

class Heroine
{
  // Other code...

private:
  HeroineState* state_;
  HeroineState* equipment_;
};

When the heroine delegates inputs to the states, she hands it to both of them:

void Heroine::handleInput(Input input)
{
  state_->handleInput(*this, input);
  equipment_->handleInput(*this, input);
}

Each state machine can then respond to inputs, spawn behavior, and change its state independently of the other machine. When the two sets of states are mostly unrelated, this works well.

In practice, you’ll find a few cases where the states do interact. For example, maybe she can’t fire while jumping, or maybe she can’t do a dive attack if she’s armed. To handle that, in the code for one state, you’ll probably just do some crude if tests of the other machine’s state to coordinate them. Not the most elegant solution, but it gets the job done.

Hierarchical State Machines

After fleshing out our heroine’s behavior some more, she’ll likely have a bunch of similar states. For example, she may have standing, walking, running, and sliding states. In any of those, pressing B jumps and pressing down ducks.

With a simple state machine implementation, we have to duplicate that code in each of those states. It would be better if we could implement that once and reuse it across all of the states.

If this was just object-oriented code instead of a state machine, one way to share code across those states would be using inheritance. We could define a class for an "on ground" state that handles jumping and ducking. Standing, walking, running, and sliding would then inherit from that and add their own additional behavior.

It turns out, this is a common structure called a hierarchical state machine. A state can have a superstate (making itself a substate). When an event comes in, if the substate doesn’t handle it, it rolls up the chain of superstates. In other words, it works just like overiding inherited methods.

In fact, if we’re using the actual State pattern to implement our FSM, we can use class inheritance to implement the hierarchy. Define a base class for the superstate:

class OnGroundState : public HeroineState
{
public:
  virtual void handleInput(Heroine& heroine, Input input)
  {
    if (input == PRESS_B)
    {
      // Jump...
    }
    else if (input == PRESS_DOWN)
    {
      // Duck...
    }
  }
};

And then each substate inherits it:

class DuckingState : public OnGroundState
{
public:
  virtual void handleInput(Heroine& heroine, Input input)
  {
    if (input == RELEASE_DOWN)
    {
      // Stand up...
    }
    else
    {
      // Didn't handle input, so walk up hierarchy.
      OnGroundState::handleInput(heroine, input);
    }
  }
};

This isn’t the only way to implement the hierarchy, of course. If you aren’t using the Gang of Four’s state pattern, this won’t work. Instead, you can model the current state’s chain of superstates explicitly using a stack of states instead of a single state in the main class.

The current state is the one on the top of the stack, under that is its immediate superstate, and then that state’s superstate and so on. When you dish out some state-specific behavior, you start at the top of the stack and walk down until one of the states handles it. (If none do, you just ignore it.)

Pushdown Automata

There’s another common extension to finite state machines that also uses a stack of states. Confusingly, the stack represents something entirely different, and is used to solve a different problem.

The problem is that finite state machines have no concept of history. You know what state you are in, but have no memory of what state you were in. There’s no easy way to go back to a previous state.

Here’s an example: Earlier, we let our fearless heroine arm herself to the teeth. When she fires her gun, we need a new state that plays the firing animation and spawns the bullet and any visual effects. So we slap together a FiringState and make all of the states that she can fire from transition into that when the fire button is pressed.

The tricky part is what state she transitions to after firing. She can pop off a round while standing, running, jumping, and ducking. When the firing sequence is complete, she should transition back to what she was doing before.

If we’re sticking with a vanilla FSM, we’ve already forgotten what state she was in. To keep track of it, we’d have to define a slew of nearly identical states — firing while standing, firing while running, firing while jumping, and so on — just so that each one can have a hardcoded transition that goes back to the right state when it’s done.

What we’d really like is a way to store the state she was in before firing and then recall it later. Again, automata theory is here to help. The relevant data structure is called a pushdown automaton.

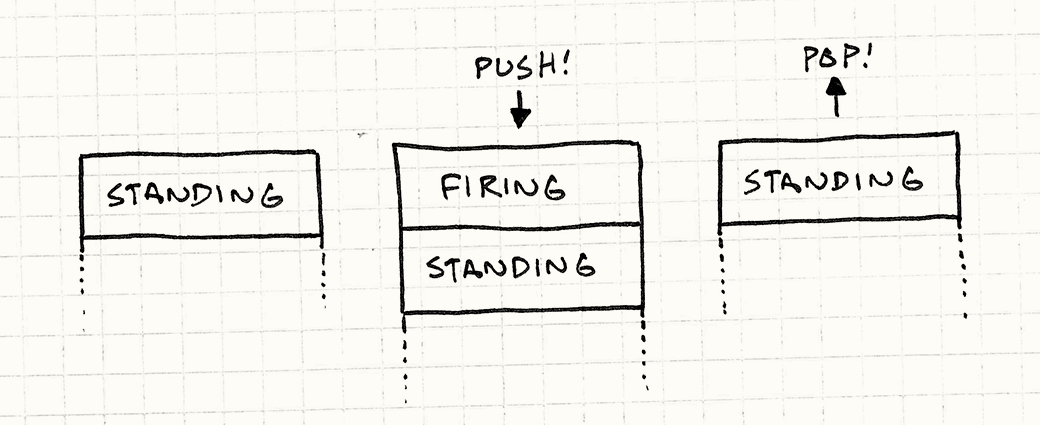

Where a finite state machine has a single pointer to a state, a pushdown automaton has a stack of them. In an FSM, transitioning to a new state replaces the previous one. A pushdown automaton lets you do that, but also gives you two additional operations:

  1. You can push a new state onto the stack. The "current" state is always the one on top of the stack, so this transitions to the new state. But it leaves the previous state directly under it on the stack instead of discarding it.

  2. You can pop the topmost state off the stack. That state is discarded, and the state under it becomes the new current state.

This is just what we need for firing. We create a single firing state. When the fire button is pressed while in any other state, we push the firing state onto the stack. When the firing animation is done, we pop that state off, and the pushdown automaton automatically transitions us right back to the state we were in before.

So How Useful Are They?

Even with those common extensions to state machines, they are still pretty limited. The trend these days in game AI is more towards exciting things like behavior trees and planning systems. If AI is what you’re interested in, all this chapter has done is whet your appetite. You’ll want to read other books to satisfy it.

This doesn’t mean finite state machines, pushdown automata, and other simple systems aren’t useful. They’re a good modelling tool for certain kinds of problems. Finite state machines are useful when:

  1. You have an entity whose behavior changes based on some internal state.
  2. That state can be rigidly divided into one of a relatively small number of distinct options.
  3. The entity responds to a series of inputs or events over time.

In games, they are most known for being used in AI, but they are also common in implementations of user input handling, navigating menu screens, parsing text, network protocols, and other asynchronous behavior.
