Game Programming Patterns / Decoupling Patterns

Component

×

This book is a work in progress!

If you see a mistake, find something unclear, or have a suggestion, please file a ticket. To know when new chapters are up, join the mailing list:

Thank you!

— Bob (@munificentbob)

Intent

Allow a single class to bridge multiple domains without coupling the domains to each other.

Motivation

Let’s say we’re building a platformer. The Italian plumber demographic is covered, so ours will be starring a Danish baker, Bjørn. It stands to reason that we’ll have a class representing our friendly pastry chef, and it will contain everything he does in the game.

Since the player controls him, that means reading controller input and translating that to motion. And, of course, he needs to interact with the level, so some physics and collision goes in there. Once that’s done, he’s got to show up on screen, so toss in animation and rendering. He’ll probably play some sounds too.

Hold on a minute; this is getting out of control. Software Architecture 101 tells us that different domains in a program should be kept isolated from each other. If we’re making a word processor, the code that handles printing shouldn’t be affected by the code that loads and saves documents. A game doesn’t have the same domains as a business app, but the rule still applies.

As much as possible, we don’t want AI, physics, rendering, sound and other domains to know about each other, but now we’ve got all of that crammed into one class. We’ve seen where this road leads to: a 5,000 line dumping ground source file so big that only the bravest ninja coders on your team even dare to go in there.

This is great job security for the few who can tame it, but hell for the rest of us. A class that big means even the most seemingly trivial changes can have far-reaching implications. Soon the class collects bugs faster than it collects features.

The Gordian knot

Even worse than the simple scale problem is the coupling one. All of the different systems in our game have been tied into a giant knotted ball of code like:

if (collidingWithFloor() && (getRenderState() != INVISIBLE))
{
  playSound(HIT_FLOOR);
}

Any programmer trying to make a change in code like that will need to know something about physics, graphics, and sound just to make sure they don’t break anything.

These two problems compound each other: the class touches so many domains that every programmer will have to work on it, but it’s so huge that doing so is a nightmare. If it gets bad enough, coders will start putting hacks in other parts of the codebase just to stay out of the hairball that this Bjorn class has become.

Cutting the knot

We can solve this like Alexander the Great: with a sword. We’ll take our monolithic Bjorn class and slice it into separate parts along domain boundaries. For example, we’ll take all of the code for handling user input and move it into a separate InputComponent class. Bjorn will then own an instance of this component. We repeat this process for each of the domains that Bjørn touches.

When we’re done, we’ll have moved almost everything out of Bjorn. All that remains is a thin shell that binds the components together. We’ve solved our huge class problem by simply dividing it up into multiple smaller classes, but we’ve accomplished more than just that.

Loose ends

Our component classes are now decoupled. Even though Bjorn has a PhysicsComponent and a GraphicsComponent, the two don’t know about each other. This means the person working on physics can modify their component without needing to know anything about graphics and vice versa.

In practice, the components will need to have some interaction between themselves. For example, the AI component may need to tell the physics component where Bjørn is trying to go. However, we can restrict this to just the components that do need to talk instead of just tossing them all in the same playpen together.

Tying back together

Another feature of this design is that the components are now reusable packages. So far, we’ve focused on our baker, but let’s consider a couple of other kinds of objects in our game world. Decorations are things in the world the player sees but doesn’t interact with: bushes, debris and other visual detail. Props are like decorations but can be touched: boxes, boulders, and trees. Zones are the opposite of decorations: invisible but interactive. They’re useful for things like triggering a cutscene when Bjørn enters an area.

Now consider how we’d set up an inheritance hierarchy for those classes if we weren’t using components. A first pass might look like:

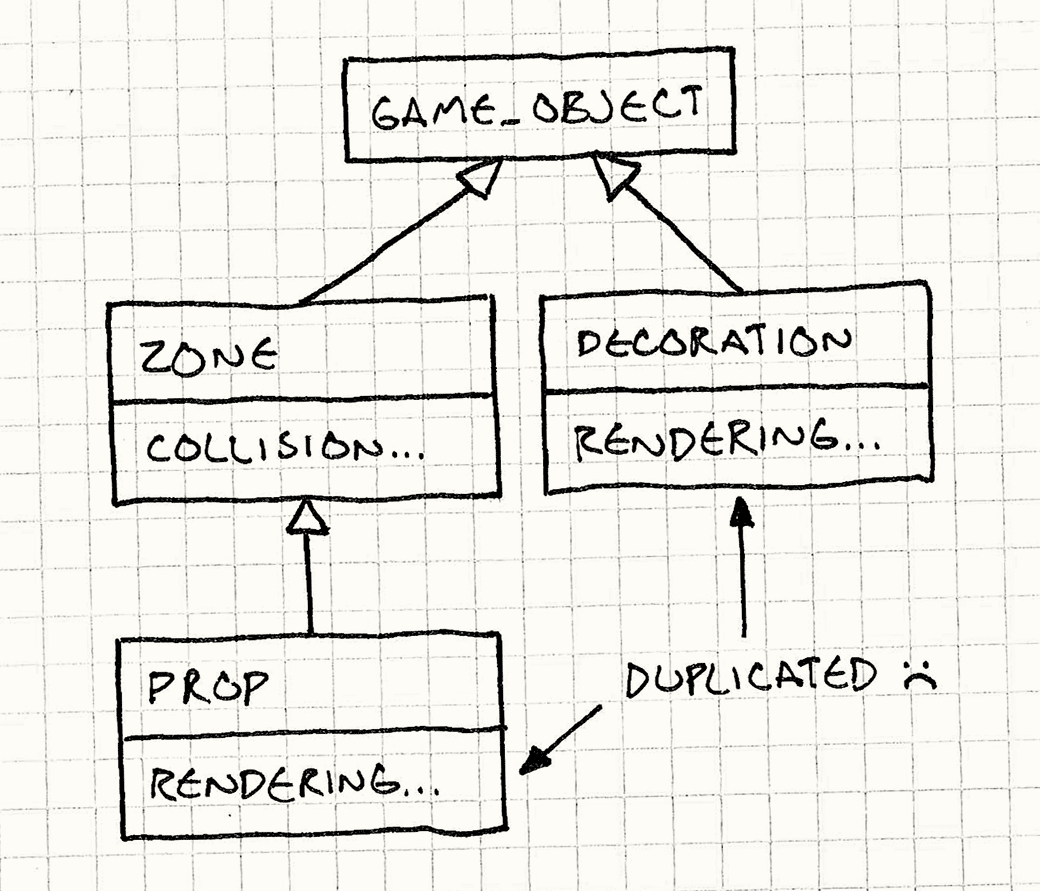

We have a base GameObject class that has common stuff like position and orientation. Zone inherits from that and adds collision detection. Likewise, Decoration inherits from GameObject and adds rendering. Prop inherits from Zone, so it can reuse the collision code. However, Prop can’t also inherit from Decoration to reuse the rendering code without running into the Deadly Diamond.

We could flip things around so that Prop inherits from Decoration, but then we end up having to duplicate the collision code. Either way, there’s no clean way to reuse the collision and rendering code between the classes that need it without resorting to multiple inheritance. The only other option is to push everything up into GameObject, but then Zone is wasting memory on rendering data it doesn’t need and Decoration is doing the same with physics.

Now lets try it with components. Our subclasses disappear completely. Instead, we have a single GameObject class and two component classes: PhysicsComponent and GraphicsComponent. A decoration is simply a GameObject with a GraphicsComponent but no PhysicsComponent, A zone is the opposite, and a prop has both components. No code duplication, no multiple inheritance, and only three classes instead of four.

Components are basically plug-and-play for objects. They let us build complex entities with rich behavior by just plugging in different reusable component objects into sockets on the entity. Think software Voltron.

The Pattern

Split a monolithic class that spans multiple different domains into a set of component classes. Each component encapsulates the portion of the original class’s behavior that is specific to one domain. The original monolithic class becomes a container class that is a shell for these components.

When to Use It

Components are most commonly found within the core class that defines the entities in a game, but may be useful in other places as well. This pattern can be put to good use when any of these is true:

Keep in Mind

This pattern adds a good bit of complexity over simply making a class and putting code in it. Each conceptual “object” becomes a cluster of objects that must be instantiated, initialized, and correctly wired together. Communication between the different components becomes more challenging, and controlling how they occupy memory is more complex.

For a large codebase, this complexity may be worth it for the decoupling and code reuse it enables, but take care to ensure you aren’t over-engineering a “solution” to a non-existent problem before applying this pattern.

Another consequence of using components is that you often have to hop through a level of indirection to get anything done. Given the container object, first you have to get the component you want, then you can do what you need. In performance critical inner loops, this pointer following may lead to poor performance.

Sample Code

One of the biggest challenges for me in writing this book is figuring out how to isolate each pattern. Many design patterns exist to contain code that itself isn’t part of the pattern. In order to distill the pattern down to its essence, I try to cut as much of that out as possible, but at some point it becomes a bit like explaining how an engine works without mentioning fuel or oil.

The Component pattern is a particularly hard one. You can’t get a real feel for it without seeing some code for each of the domains that it decouples, so I’ll have to sketch in a bit more of Bjørn’s code than I’d like to. The pattern is really just the component classes themselves, but the code in them should help clarify what the classes are for. It’s fake code — it calls into other classes that aren’t presented here — but it should give you an idea of what we’re going for.

A monolithic class

To get a clearer picture of how this pattern is applied, we’ll start by showing a monolithic Bjorn class that does everything we need but doesn’t use this pattern:

class Bjorn
{
public:
  void update(World& world, Graphics& graphics)
  {
    // Apply user input to hero's velocity.
    switch (Controller::getJoystickDirection())
    {
      case DIR_LEFT:
        velocity_ -= WALK_ACCELERATION;
        break;

      case DIR_RIGHT:
        velocity_ += WALK_ACCELERATION;
        break;
    }

    // Modify position by velocity.
    x_ += velocity_;
    world.resolveCollision(volume_, x_, y_, velocity_);

    // Draw the appropriate sprite.
    Sprite* sprite = &spriteStand_;
    if (velocity_ < 0) sprite = &spriteWalkLeft_;
    else if (velocity_ > 0) sprite = &spriteWalkRight_;

    graphics.draw(*sprite, x_, y_);
  }

private:
  static const int WALK_ACCELERATION = 1;

  int velocity_;
  int x_, y_;

  Volume volume_;

  Sprite spriteStand_;
  Sprite spriteWalkLeft_;
  Sprite spriteWalkRight_;
};

Bjorn has an update() method that gets called once per frame by the game. It reads the joystick to determine how to accelerate the baker. Then it resolves its new position with the physics engine. Finally, it draws Bjørn onto the screen.

The sample implemention here is trivially simple. There’s no gravity, animation, or any of the dozens of other details that make a character fun to play. Even so, we can see that we’ve got a single function that several different coders on our team will probably have to spend time in and it’s starting to get a bit messy. Imagine this scaled up to a thousand lines and you can get an idea of how painful it can become.

Splitting out a domain

Starting with one domain, lets pull a piece out of Bjorn and push it into a separate component class. We’ll start with the first domain that gets processed: input. The first thing Bjorn does is read in user input and adjust his velocity based on it. Let’s move that logic out into a separate class:

class InputComponent
{
public:
  void update(Bjorn& bjorn)
  {
    switch (Controller::getJoystickDirection())
    {
      case DIR_LEFT:
        bjorn.velocity -= WALK_ACCELERATION;
        break;

      case DIR_RIGHT:
        bjorn.velocity += WALK_ACCELERATION;
        break;
    }
  }

private:
  static const int WALK_ACCELERATION = 1;
};

Pretty simple. We’ve taken the first section of Bjorn’s update() method and put it into this class. The changes to Bjorn are also straightforward:

class Bjorn
{
public:
  int velocity;
  int x, y;

  void update(World& world, Graphics& graphics)
  {
    input_.update(*this);

    // Modify position by velocity.
    x += velocity;
    world.resolveCollision(volume_, x, y, velocity);

    // Draw the appropriate sprite.
    Sprite* sprite = &spriteStand_;
    if (velocity < 0) sprite = &spriteWalkLeft_;
    else if (velocity > 0) sprite = &spriteWalkRight_;

    graphics.draw(*sprite, x, y);
  }

private:
  InputComponent input_;

  Volume volume_;

  Sprite spriteStand_;
  Sprite spriteWalkLeft_;
  Sprite spriteWalkRight_;
};

Bjorn now owns an InputComponent object. Where before he was handling user input directly in the update() method, now he delegates to the component:

input_.update(*this);

We’ve only started but already we’ve gotten rid of some coupling: the main Bjorn class no longer has any reference to Controller. This will come in handy later.

Splitting out the rest

Now let’s go ahead and do the same cut and paste job on the physics and graphics code. Here’s our new PhysicsComponent:

class PhysicsComponent
{
public:
  void update(Bjorn& bjorn, World& world)
  {
    bjorn.x += bjorn.velocity;
    world.resolveCollision(volume_, bjorn.x, bjorn.y, bjorn.velocity);
  }

private:
  Volume volume_;
};

In addition to moving the physics behavior out of the main Bjorn class, you can see we’ve also moved out the data too: The Volume object is now owned by the component.

Last but not least, here’s where the rendering code lives now:

class GraphicsComponent
{
public:
  void update(Bjorn& bjorn, Graphics& graphics)
  {
    Sprite* sprite = &spriteStand_;
    if (bjorn.velocity < 0) sprite = &spriteWalkLeft_;
    else if (bjorn.velocity > 0) sprite = &spriteWalkRight_;

    graphics.draw(*sprite, bjorn.x, bjorn.y);
  }

private:
  Sprite spriteStand_;
  Sprite spriteWalkLeft_;
  Sprite spriteWalkRight_;
};

We’ve yanked almost everything out, so what’s left of our humble pastry chef? Not much:

class Bjorn
{
public:
  int velocity;
  int x, y;

  void update(World& world, Graphics& graphics)
  {
    input_.update(*this);
    physics_.update(*this, world);
    graphics_.update(*this, graphics);
  }

private:
  InputComponent    input_;
  PhysicsComponent  physics_;
  GraphicsComponent graphics_;
};

The Bjorn class now basically does two things: it holds the set of components that actually define it, and it holds the state that is shared across multiple domains. Position and velocity are still in the core Bjorn class for two reasons. First, they are “pan-domain” state: almost every component will make use of them, so it isn’t clear which component should own them if we did want to push them down.

Secondly, and more importantly, it gives us an easy way for the components to communicate without being coupled to each other. Let’s see if we can put that to use.

Robo-Bjørn

So far, we’ve pushed our behavior out to separate component classes, but we haven’t abstracted the behavior out. Bjorn still knows the exact concrete classes where his behavior is defined. Let’s change that.

We’ll take our component for handling user input and hide it behind an interface. We’ll turn InputComponent into an abstract base class:

class InputComponent
{
public:
  virtual ~InputComponent() {}
  virtual void update(Bjorn& bjorn) = 0;
};

Then we’ll take our existing user input handling code and push it down into a class that implements that interface:

class PlayerInputComponent : public InputComponent
{
public:
  virtual void update(Bjorn& bjorn)
  {
    switch (Controller::getJoystickDirection())
    {
      case DIR_LEFT:
        bjorn.velocity -= WALK_ACCELERATION;
        break;

      case DIR_RIGHT:
        bjorn.velocity += WALK_ACCELERATION;
        break;
    }
  }

private:
  static const int WALK_ACCELERATION = 1;
};

We’ll change Bjorn to hold a pointer to the input component, instead of owning an instance directly:

class Bjorn
{
public:
  int velocity;
  int x, y;

  Bjorn(InputComponent* input)
  : input_(input)
  {}

  void update(World& world, Graphics& graphics)
  {
    input_->update(*this);
    physics_.update(*this, world);
    graphics_.update(*this, graphics);
  }

private:
  InputComponent*   input_;
  PhysicsComponent  physics_;
  GraphicsComponent graphics_;
};

Now, when we instantiate Bjorn, we can pass in an input component for it to use, like so:

Bjorn* bjorn = new Bjorn(new PlayerInputComponent());

This instance can be any concrete type that implements our abstract InputComponent interface. We pay a price for this: update() is now a virtual method call, which is a little slower. What do we get in return for this cost?

Most consoles require a game to support “demo mode.” If the player sits at the main menu without doing anything, the game will start playing automatically, with the computer standing in for the player. This keeps the game from burning the main menu into your TV, and also makes the game look nicer when it’s running on a kiosk in a store.

Hiding the input component class behind an interface lets us get that working. We already have our concrete PlayerInputComponent that’s normally used when playing the game. Now let’s make another one:

class DemoInputComponent : public InputComponent
{
public:
  virtual void update(Bjorn& bjorn)
  {
    // AI to automatically control Bjorn...
  }
};

When the game goes into demo mode, instead of constructing Bjørn like we did earlier, we’ll wire him up with our new component:

Bjorn* bjorn = new Bjorn(new DemoInputComponent());

And now, just by swapping out a component, we’ve got a fully functioning computer-controlled player for demo mode. We’re able to reuse all of the other code for Bjørn — physics and graphics don’t even know there’s a difference. Maybe I’m a bit strange, but it’s stuff like this that gets me up in the morning.

No Bjørn at all?

If you look at our Bjorn class now, you’ll notice there’s nothing really “Bjørn” about it — it’s just a component bag. In fact, it looks like a pretty good candidate for a base “game object” class that we can use for every object in the game. All we need to do is pass in all the components, and we can build any kind of object just by picking and choosing parts like Dr. Frankenstein.

Let’s take our two remaining concrete components — physics and graphics — and hide them behind interfaces like we did with input:

class PhysicsComponent
{
public:
  virtual ~PhysicsComponent() {}
  virtual void update(GameObject& obj, World& world) = 0;
};

class GraphicsComponent
{
public:
  virtual ~GraphicsComponent() {}
  virtual void update(GameObject& obj, Graphics& graphics) = 0;
};

Then we re-christen Bjorn into a generic GameObject class that uses those interfaces:

class GameObject
{
public:
  int velocity;
  int x, y;

  GameObject(InputComponent* input,
             PhysicsComponent* physics,
             GraphicsComponent* graphics)
  : input_(input),
    physics_(physics),
    graphics_(graphics)
  {}

  void update(World& world, Graphics& graphics)
  {
    input_->update(*this);
    physics_->update(*this, world);
    graphics_->update(*this, graphics);
  }

private:
  InputComponent*    input_;
  PhysicsComponent*  physics_;
  GraphicsComponent* graphics_;
};

Our existing concrete classes will get renamed and implement those interfaces:

class BjornPhysicsComponent : public PhysicsComponent
{
public:
  virtual void update(GameObject& obj, World& world)
  {
    // Physics code...
  }
};

class BjornGraphicsComponent : public GraphicsComponent
{
public:
  virtual void update(GameObject& obj, Graphics& graphics)
  {
    // Graphics code...
  }
};

And now we can build an object that has all of Bjørn’s original behavior without having to actually create a class for him, just like this:

GameObject* createBjorn()
{
  return new GameObject(new PlayerInputComponent(),
                        new BjornPhysicsComponent(),
                        new BjornGraphicsComponent());
}

By defining other functions that instantiate GameObjects with different components, we can create all of the different kinds of objects our game needs.

Design Decisions

The most important design question you’ll need to answer with this pattern is “What set of components do I need?” The answer there is going to depend on the needs and genre of your game. The bigger and more complex your engine is, the more finely you’ll likely want to slice your components.

Beyond that, there are a couple of more specific options to consider:

How does the object get its components?

Once we’ve split up our monolithic object into a few separate component parts, we have to decide who puts the parts back together.

How do components communicate with each other?

Perfectly decoupled components that function in isolation is a nice ideal, but doesn’t really work in practice. The fact that these components are part of the same object implies that they are part of a larger whole and need to coordinate. That means communication.

So how can the components talk to each other? There are a couple of options, but unlike most design “alternatives” in this book, these aren’t exclusive: you will likely support more than one at the same time in your designs.

Unsurprisingly, there’s no one best answer here. What you’ll likely end up doing is using a bit of all of them. Shared state is useful for the really basic stuff that you can take for granted that every object has — things like position and size.

Some domains are distinct but still closely related. Things like animation and rendering, user input and AI, physics and collision. If you have separate components for each half of those pairs, you may find it easiest to just let them know directly about their other half.

Messaging is useful for “less important” communication. Its fire-and-forget nature is a good fit for things like having an audio component play a sound when a physics component sends a message that the object has collided with something.

As always, I recommend you start simple, and then add in additional communication paths if you need them.
